The most cost-effective measurement tool for single HD/FM station

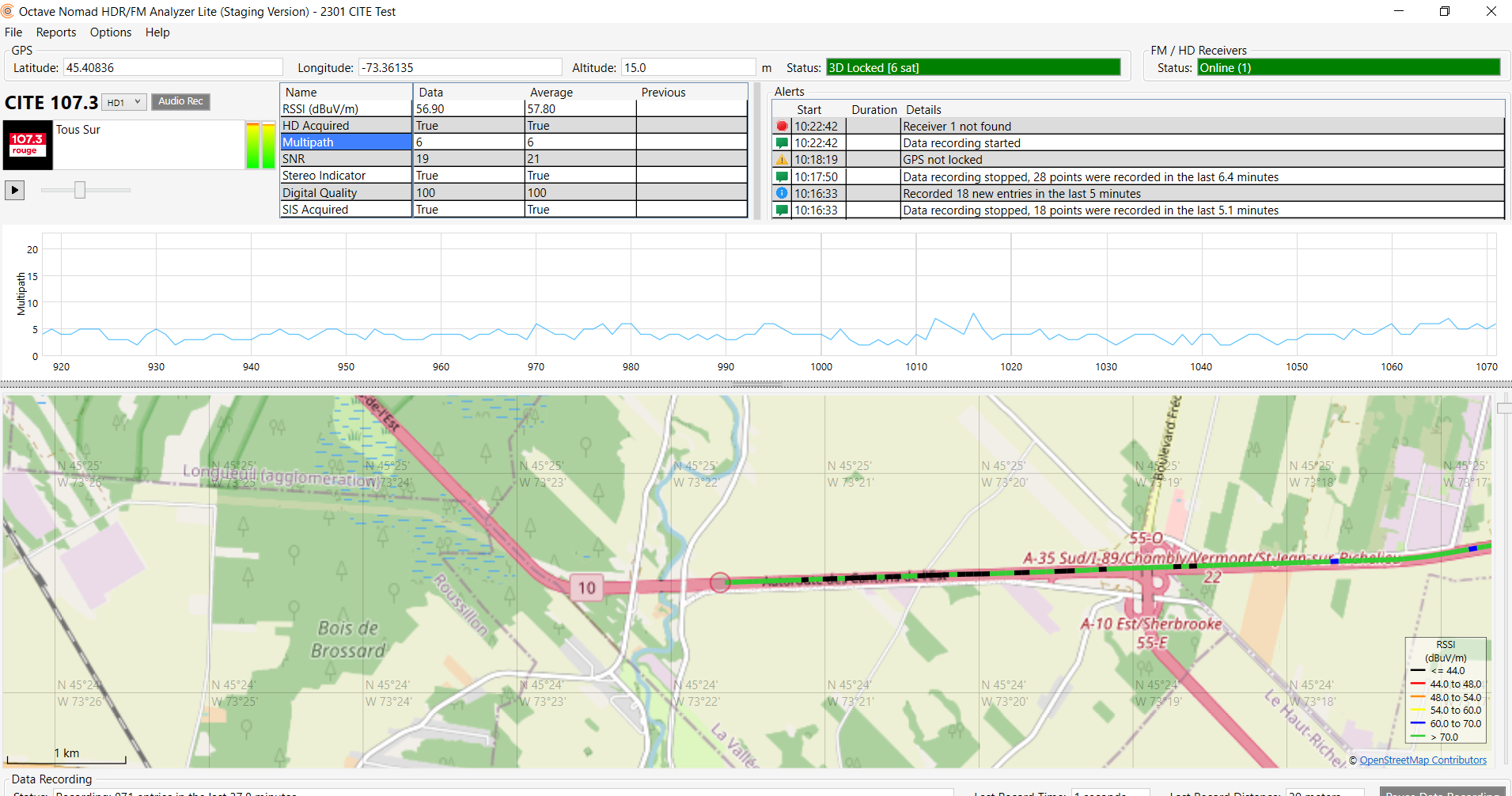

HDR Front Panel

Featuring recording with real-time service quality and propagation analysis for up to 5 channels simultaneously, designed for smart HD Radio™ / Analog FM mobile measurement.

Key new features in version 2:

  • Model metadata editor and optional model converter
  • Offline measurement campaign player
  • New antenna validation reports
  • Spectrum graph / Power bar graph selection
  • VU meters for each recorded channel
  • One-click complete campaign summary report
  • See Additional Information below for more

Documentation and Specifications


Additional Information


The Nomad HDR/FM Analyzer measures the RF level of HD Radio sideband ratios to analog and interferer carriers along with analog FM RF level recording of each station for the entire FM band. It utilizes highly accurate GPS monitoring using WAAS/EGNOS satellites and supports logging of up to 5 simultaneous channels (HD Radio or analog). Real-time propagation analysis reports on unexpected RF drops, presence of interferers, HD Radio sideband power ratio mismatches and other features. Reporting is available via Excel-friendly CSV, Google Earth KML formats or OpenStreetMap PDF outputs.

The unique real-time propagation analysis is possible by pre-computing the “spectrum picture” of the surrounding measurement campaign area by uploading the propagation files from the Octave Propagation Model Cloud Service, which connects and analyzes the data from the FCC, ISED (Canada) or Mexico broadcasting database. This allows a single user to drive into his/her measurement campaign while receiving audible notification when the system detects reception problems, potential interference issues, etc. This enables the user to quickly decide to make more measurements in critical areas during the drive tests to gather to most relevant information.

  • Record simultaneously up to 5 channels
  • Real time propagation analysis with prediction models (based on FCC, ISED and Mexico broadcasting databases)
  • Real time audible alarm feedback, reporting on: system status, propagation detected issues, other configuration alarms
  • Real time audio recording (HD and analog) and geotag playback
  • Time-based or distance-based data acquisition
  • High accuracy GPS positioning
  • NEW in V2: Full campaign offline player
  • NEW in V2: Model metadata editor and optional model converter
  • NEW in V2: Spectrum analyzer-only mode for radiocom measurements
  • NEW in V2: Spectrum graph / power bar graph mode
  • NEW in V2: Export graph to CSV
  • NEW in V2: Support model KML overlay on OSM maps
  • NEW in V2: Audio playback/record control (HDR only / split / blend / analog)
  • HD Radio™ metrics recording including1 :
    • HD Signal Acquired
    • HD Digital Audio Acquired
    • HD Available Programs
    • SIS Acquired
    • Program QI
    • Program DAAI
    • CD/NO
    • HD Artist
    • HD Title
    • Current Image Status
    • Current Image Name
    • Logo Image Interval
    • Album Image Name
    • Album Image Interval
    • Realtime audio recording (right channel analog and left channel digital) and geotagging for later analysis or playback
  • FM/RBDS metrics recording including1:
    • Multipath
    • SNR
    • RDS Loss
    • RDS PI
    • Stereo Indicator
    • RSSI
    • NEW in V2: Left channel level
    • NEW in V2: Right channel level
    • RDS PS
    • RDS RT
    • Realtime audio recording and geotagging for later analysis or playback
  • Spectrum Analyzer metrics:
    • Main channel power
    • HD Radio™ side band power (MP1, MP2, MP3 or MP11 modes)
    • 1st adjacent channel power
    • 2nd adjacent channel power
    • Ability to save spectrum graph for later analysis
  • Direct post-processing output:
    • NEW in V2: One-click campaign summary report in OpenXML(docs), HTML5 or RTF format
    • Each individual metrics is recorded as CSV File
    • Google Earth KML report generation available for most metrics
    • Also support generating map reports to PNG via Open Street Map
    • Detailed analysis such as analog to HD sideband carrier ratios and model comparison
    • NEW in V2: Unique antenna pattern validation analysis now with csv, polar graph and heat map
  • Supports 3 languages: English, French and Spanish

1 Metrics varies depending on the optional receiver used
